Tools and end effectors

Use Start Gripper to declare the attached tool, End Effector to operate a gripper, and Tool Exchange to dock or load a tool. The pipettor uses its own task type.

The CMS configuration includes none, hande, epick, 2fg7, and pipettor. Start Gripper (start_gripper in JSON) must match the tool already attached. Changing this setting selects a model; it does not physically change tools. See end-effector configuration when adding or modifying a tool.

Gripper states

In the GUI, add an End Effector step and double-click it. Set Type to the attached gripper and choose a matching Action:

Tool	Grasp	Release
Hand-E (`hande`)	`hande_closed`	`hande_open`
ePick (`epick`)	`vacuum_on`	`vacuum_off`
2FG7 (`2fg7`)	`2fg7_closed`	`2fg7_open`

The Action list includes states for multiple tools, so check that the state belongs to the selected gripper.

In JSON, end_effector_action takes the exact state name. For example, this script opens an already attached Hand-E:

{
  "start_gripper": "hande",
  "tasks": [
    {
      "task_type": "end_effector",
      "end_effector_action": "hande_open"
    }
  ]
}

The optional end_effector_type defaults to the current gripper. Vision pick/place tasks also accept grasp and release, which use the beamline’s state mapping; standalone End Effector tasks use literal state names. See the task fields.

none and pipettor have no gripper planning group. An End Effector task for either returns success without actuating a device; use Pipettor for pipette commands.

Tool exchange

To replace one tool with another, dock the attached tool first, then load the replacement. Add a Tool Exchange step for each operation:

Operation	Set `gripper` to	Tool state after success
`dock`	The currently attached tool	`none`
`load`	The tool to pick up; requires `none` currently attached	The requested tool

Set Dock Number to the tool’s dock and Approach Pose to a calibrated pose for the configured dock layout. The movement uses the beamline’s dock spacing and load/dock sequence. See tool-exchange fields.

Docking insertion and retreat must plan in full. A partial path would shift the start of the next move, so EROBS rejects it. A successful plan does not confirm that the tool attached.

Changing Operation in the editor resets Approach Pose to load_approach or dock_approach. Check that pose before saving.

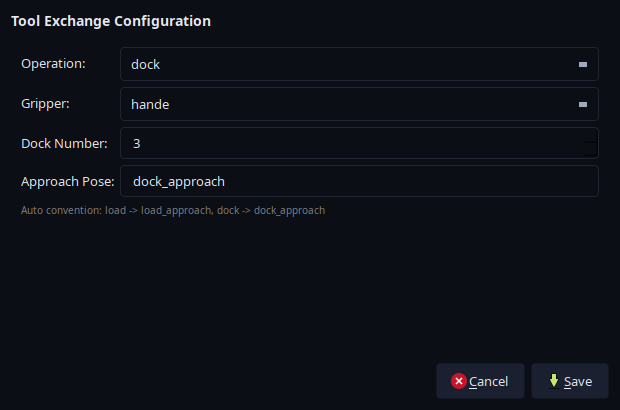

Tool-exchange editor configured to dock the Hand-E gripper, with dock number and dock_approach pose fields. — The tool-exchange editor showing Hand-E docking settings. Saving the step does not execute it. Open the full-resolution screenshot.

Tool exchange ends the current motion batch. After the attachment changes, EROBS restarts MoveIt with the new tool’s configuration. The before-and-after RViz views show this model change in a mock session. Tool-exchange tasks do not support Dry Run.

If an exchange fails, establish which tool is attached before retrying: the mechanical change can finish before model initialization fails. See tool-change recovery and known limits.

Pipettor operations

Add a Pipettor step and choose SUCK (aspirate), EXPEL (dispense), EJECT_TIP, or SET_LED. These commands operate the device without moving the arm. Add positioning and retreat as separate steps. Pipettor tasks do not support Dry Run.

The GUI’s Volume % field and JSON’s volume_pct use a fraction from 0–1, not microlitres. The imported driver currently ignores this value and uses fixed SUCK/EXPEL sequences. Changing it does not set a metered liquid volume. See pipettor fields.

For rack workflows, pickup_tip and pickup_vial generate task sequences from the installation’s rack configuration. pickup_vial can also include liquid handling. See the macro reference.

ePick status and limits

Successful vacuum_on execution does not confirm that a sample remains attached. Continuous vacuum monitoring and loss-triggered aborts are disabled, and vacuum_ok can be returned without a measurement.

Consecutive gripper and MoveTo steps can share a batch, with no automatic vacuum-confirmation step between them. Use the deployment’s handling procedure to confirm retention before a physical transfer.

After changing a suction cup, update the cup geometry and model configuration to match it.
